-디지털 입력 : 동축 2계통(RCA), 광 1계통(TOS), USB 1계통(B타입 96kHz)

- 아날로그 입력 : 언밸런스 4계통(RCA)

- 크기/무게 : W440 x H130 x D430mm / 12kg




Product Information
•Model: Mimesis 27.8
•Type: Analog Preamplifier
•Status: Current

Technical Specs
•POWER SUPPLY•Nominal line voltage: 117 or 234 V (switchable)
•Fuse 2.5A for 110V and 220V
•Input voltage range: +/- 10 %

•ANALOG INPUTS•4 x RCA analog input (Left & Right)

•DIGITAL INPUTS•1 x Digital S/PDIF coaxial RCA 75 Ohms or Toslink Optical
•1 x Digital S/PDIF coaxial RCA 75
•1 x USB AUDIO (up to 96 kHz /24 bits)

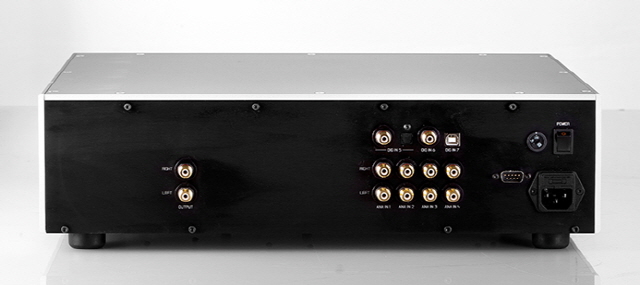

•REAR PANEL CONNECTORS AND CONTROLS•1 x analog output RCA connector Left & Right
•1 x USB Audio connector
•ON/OFF power switch key
•Voltage input selector
•RS232 Command connector

•INPUT•Input impedance: 50 kOhms
•Nominal input level: 2.25 V RMS
•Maximum input level (unbalanced): 3.6 V RMS

•OUTPUT•Output impedance: 75 Ohms
•Maximum output level (unbalanced): 3.6 V RMS

•FREQUENCYRESPONSE These values for any level to maximum output level•+/- 0.1 dB, 10 - 20 kHz
•+/- 1.5 dB, 10 - 100 kHz
•+/- 3 dB, 10 - 200 kHz

•DISTORTION With 1 V RMS output level, 80 KHz measurement bandwidth, 600 Ohms termination impedance•THD unbalanced in to unbalanced out < 0.005% (-90 dB) flat with frequency
•IMD unbalanced in to unbalanced out < 0.002% (-80 dB)

•NOISE•Signal-to noise ratio: > 120 dB at 0 dBFS

•OPERATING TEMPERATURE•Room temperature: -30 to +40 degrees Celsius (-22 to +104 degrees Fahrenheit)
•Internal temperature: +45 to +65 degrees Celsius (+113 to +149 degrees Fahrenheit)

•SIZE ANDWEIGHT•44 W x 43 H x 13 D (cm)
•Weight: 12 kg

•WARRANTY•3 years parts and labor
