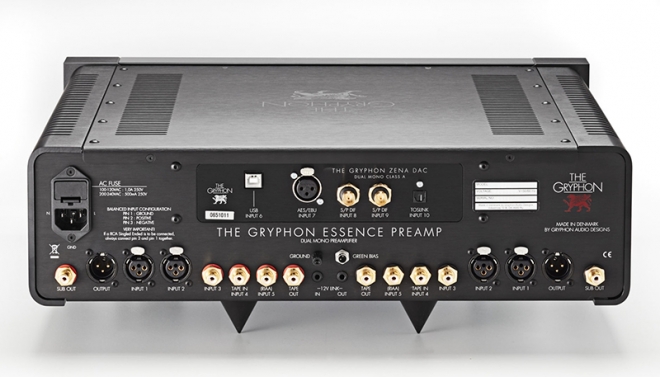

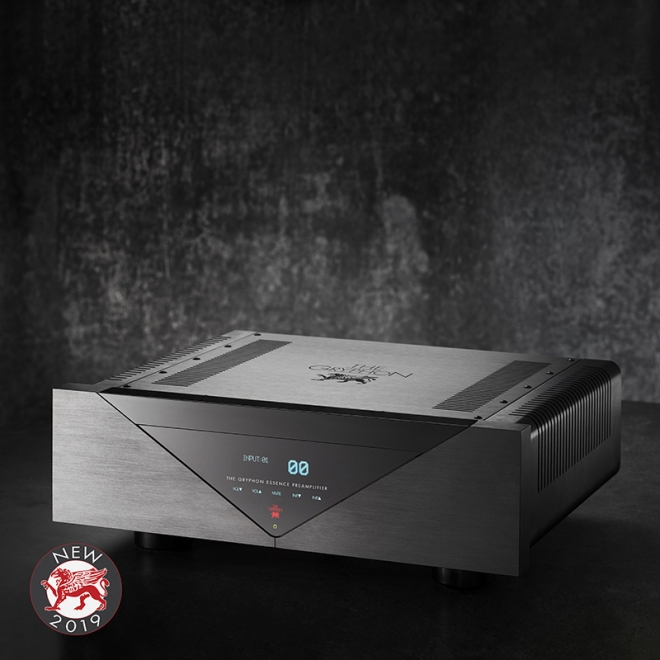

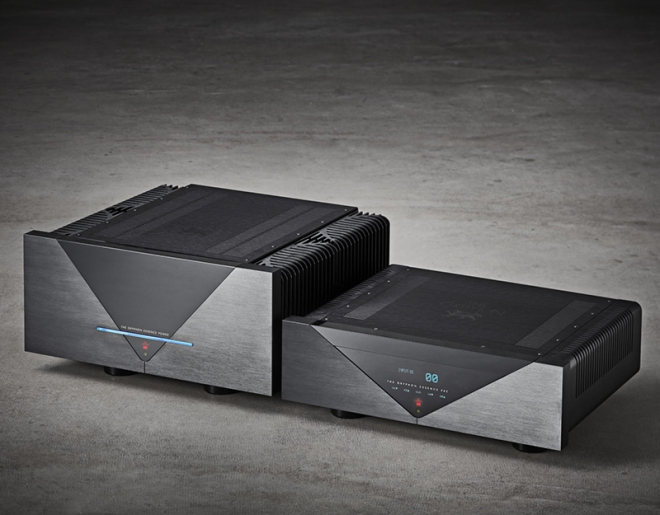

Gryphon Essence 그리폰 에센스 프리앰프 (DAC, 포노앰프 옵션 보드)
Features
• Exterior design by Flemming E. Rasmussen
• Electronics design by Tom Møller
• Zero negative feedback
• True Dual Mono configuration
• Fully discrete, DC-coupled Class A circuit topology
• Microprocessor-controlled 43-step fully balanced relay volume attenuator for best sonic performance based on a minimalist contingent of ultra-precision resistors
• High-speed, discrete, single-ended Class A input buffer for best possible sonic performance
• Optional PCM/DSD DAC module with one USB, 2 x SPDIF, 1 AES and 1 optical input. PCM up to Fs = 384 kHZ, DSD up to DSD512
• Optional MM/MC Gryphon PS2 phonostage module based on legendary Gryphon Legato head amp
• Local shunt regulators for optimal noise suppression
• Input level matching to prevent abrupt volume changes
• Ultra-short signal path
• Minimal internal wiring
• Gold-plated Swiss Neutrik XLR sockets for two balanced sources and 1 output
• Gold-plated phono sockets with Teflon insulation for 3 inputs and 2 outputs
• Fixed-level AV throughput, balanced or single-ended, for uncompromising integration with separate surround preamplifier
• Large Vacuum Fluorescent Display for easy legibility
• Adjustable display lighting (100/75/50/25%, Off)
• Backlit touch-sensitive front panel controls
• 12 V DC link input and output
• Green Bias link output for automatic Green Bias control with any Gryphon power amplifier
• Stylish infrared remote control
• Flash memory upgrades possible via PC or Key-fob
• EU CE approval
• Standby current consumption < 0.5 W
• Designed and built in Denmark
Specifications:
• +18 dB gain, max.
• Output impedance: 15 Ohm XLR, 22.5 Ohm RCA
• Frequency bandwidth (-3 dB): 0.1 Hz – 1 MHz
• Power supply capacity: 2 x 26,000 μF
• Input impedance, balanced (20 Hz – 20 kHz): 50 kOhm
• Input Impedance, single-ended (20 Hz – 20 kHz): 25 kOhm
Dimensions:
• 47 x 16.5 x 38.5 cm (WxHxD), 13.4 kg net.
All specifications are preliminary and subject to change without notice.

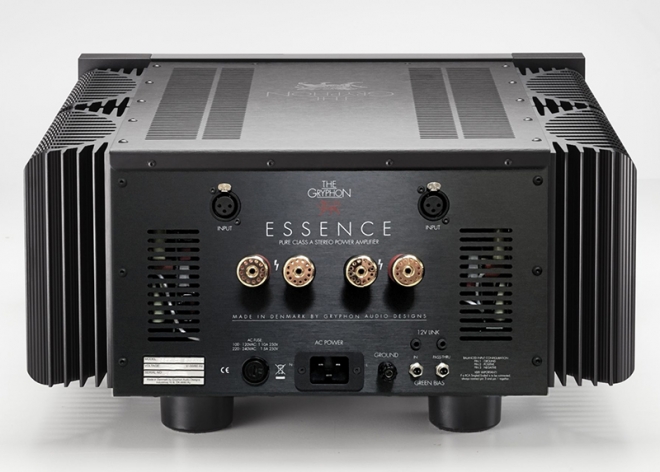

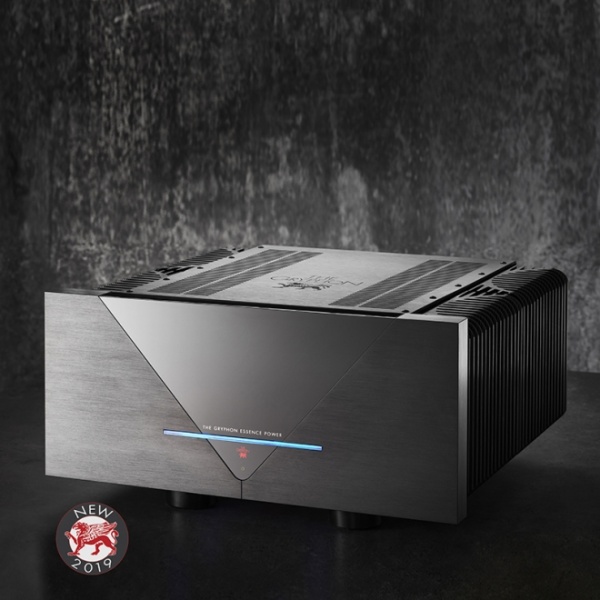

Gryphon Essence 그리폰 에센스 파워앰프(순 A클라스 앰프)
Features
• Exterior design by Flemming E. Rasmussen
• Electronics design by Tom Møller
• Dual mono configuration
• Zero global negative feedback
• 440,000 μF (Stereo) or 880,000 μF (Mono version) capacitor bank
• Balanced dual differential Class A input circuitry followed by a high-speed voltage amplifying Class A stage
• Fully regulated low noise power supply for all voltage amplifying stages
• DC servo coupling
• Frequency-independent damping factor
• Polypropylene capacitors for local power supply decoupling
• Four-layer up to 70 μm copper printed circuit boards
• One custom-made 1350 VA toroidal transformer
• Separate power supply for digital and analog circuits
• Soft Start turn-on prevents triggering of fuses in the home electrical system
• Gold-plated Swiss Neutric XLR socket for one balanced input per channel
• Gold-plated custom-built binding posts
• 12 V DC link for power up and down
• Automatic Green Bias setting or manual Low/High bias
• Flash memory upgrades via PC or Key-fob
• Non-invasive protection system
• RGB LED bar indicating Bias High, Low status.
• Standby current consumption < 0.5 W
• EU CE approval
• Designed and built in Denmark
Specifications: Stereo version
• 2 x 50W @ 8 Ω, 2 x 100W @ 4 Ω, 2 x 190W @ 2 Ω at 115V/230V AC supply
• 20 very high current bipolar output transistors
• Output impedance: 0.015 Ω
• Bandwidth (-3dB): 0.3 Hz to 350 kHz
• Power supply capacity (both channels): 440,000 μF
• Gain: +31.0 dB
• Input impedance, balanced (20 Hz-20 kHz): 20 kΩ
Dimensions:
• 47 x 24 x 46 cm (WxHxD), 45 kg net. each cabinet.
All specifications are preliminary and subject to change without notice.
)
!
