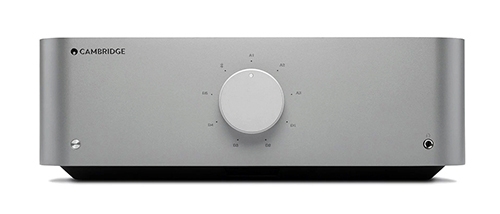

CAMBRIDGE audio EDGE A 인티앰프
CONTINUOUS POWER OUTPUT
100W RMS into 8 Ohms; 200W RMS into 4 Ohms
THD (UNWEIGHTED)
<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms)
FREQUENCY RESPONSE
<3Hz – >80kHz +/-1dB
S/N RATIO (REF FULL POWER)
>103 dB
CROSSTALK @ 1KHZ
< -100dB
INPUT SENSITIVITY
Input A1-A2 (unbalanced) 380mV RMS
INPUT IMPEDANCES
Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm
INPUTS
Balanced, Coax S/PDIF, TOSLINK, USB Audio, Unbalanced, Bluetooth, Audio Return Channel (ARC)
OUTPUTS
Speakers, Preamplifier, Headphones (impedance of between 12 and 600 ohms are recommended)
USB AUDIO INPUT
USB Audio Class 2.0 supporting up to 32-bit 384kHz PCM, or up to DSD256
BLUETOOTH
4.1 (Smart/BLE enabled) A2DP/AVRCP supporting formats up to aptX HD
TOSLINK INPUT
6/24 bits, 32-96kHz
COAX S/PDIF INPUT
16/24 bits, 32-192kHz
MAX POWER CONSUMPTION
1000W
STANDBY POWER CONSUMPTION
<0.5W
DIMENSIONS
150 x 460 x 405mm (5.9 x 18.1 x 15.9")
WEIGHT
24.4kg (53.7lbs)

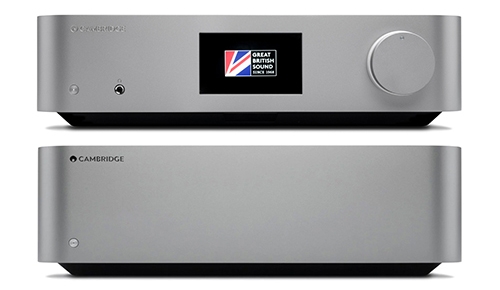

CAMBRIDGE audio EDGE NQ + EDGE W 프리+ 파워 앰프
CAMBRIDGE audio EDGE NQ 프리앰프
D/A CONVERTER
THD <0.0008%, 20Hz - 20kHz, 24-bit, 1Vrms output
THD ANALOG SOURCES
<0.0008%, 20Hz – 20kHz, 1Vrms output
FREQUENCY RESPONSE
20Hz-20kHz +/- 0.1dB
S/N RATIO (REF 1V OUTPUT)
>103 dB
CROSSTALK @ 1KHZ
< -100dB
MAX PREAMP OUTPUT
6Vrms single ended or 6Vrms + 6Vrms balanced
USB AUDIO INPUT
USB Audio Class 2.0 supporting up to 32-bit 384kHz PCM, or up to DSD256
USB DRIVE INPUT
1 x USB 2.0 current limited to 1A, FAT32 / NTFS / HFS / HFS+
BLUETOOTH
4.1 (Smart/BLE enabled) A2DP/AVRCP supporting SBC, AAC, aptX and aptX HD
UPNP CONNECTIVITY
Yes - Accesible via supported app
CHROMECAST BUILT-IN
Yes
TOSLINK INPUT
16/24-bit 32-96kHz
COAX S/PDIF INPUT
16/24-bit 32-192kHz
WI-FI
IEEE 802.11 b/g or n (2.4GHz), Encryption WEP, WPA, WPA2
ETHERNET
IEEE 802.3, 10 Base-T or 100 Base-T
MAX POWER CONSUMPTION
100W
STANDBY POWER CONSUMPTION
<0.5W
DIMENSIONS
120 x 460 x 405mm (4.7 x 18.1 x 15.9”)
WEIGHT
10.2kg (22.4lbs)
IN THE BOX
Edge NQ Pre-amplifier and Network Player; 1.5M Power Lead; Edge Remote Control; 3 x AAA Batteries; Bluetooth Antenna; Wi-Fi Dongle; Edge Link Cable; Edge NQ User Manual
CHROMECAST BUILT-IN
Hi-res wireless connectivity that's compatible with hundreds of Android and iOS apps. Chromecast built-in is a trademark of Google LLC
CAMBRIDGE audio EDGE W 파워앰프
CONTINUOUS POWER OUTPUT
100W RMS into 8 Ohms; 200W RMS into 4 Ohms
THD (UNWEIGHTED)
<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms)
FREQUENCY RESPONSE
<3Hz – >80kHz +/-1dB
S/N RATIO (REF 1W INTO 8 OHM)
>93 dB
CROSSTALK @ 1KHZ
< -100dB
S/N RATIO (REF FULL POWER)
>113 dB
INPUT SENSITIVITY
Input A1-A2 (unbalanced) 1.09V RMS
INPUT IMPEDANCES
Input A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm
INPUTS
Balanced, Unbalanced
OUTPUTS
Speakers, Loop out
MAX POWER CONSUMPTION
1000W
STANDBY POWER CONSUMPTION
<0.5W
DIMENSIONS
150 x 460 x 405mm (5.9 x 18.1 x 15.9")
WEIGHT
23.6kg (51.9lbs)
IN THE BOX
Edge W Power Amplifier; 1.5M Power Lead; Edge Link Cable; Edge W User
)
!
