SpecificationsPower Supply UnitMain voltage230 [Vac]Dimensions440 x 420 x 120 mm Power Transformers
Low noise toroïdal power transformer of 175 [VA]
Total power of 350 [VA]
Analog windings35V each / 2 x 25 [VA]Digital windigs6V each / 2 x 25 [VA]CapactitanceTotal capacitance of more than 115 [mF]Ground
Digital and analog ground separated

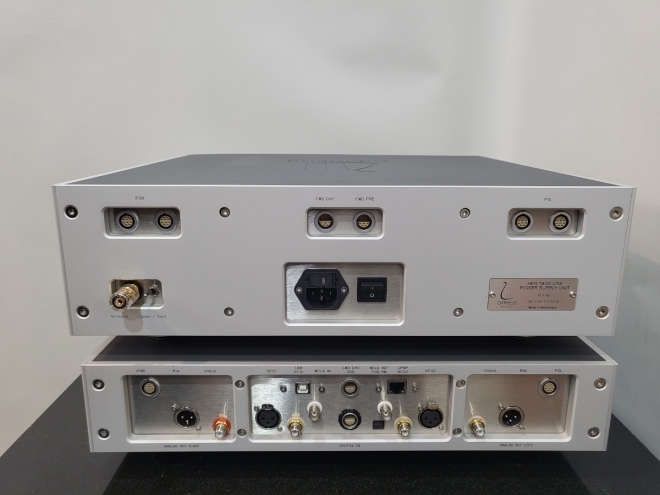

A ground connector is present on the rear panel for external grounding
Weight24.3kgPower consumption
Standby : 4.5 [W]
With only the D/A Converter : 57 [W]
With only the preamplifier : 19 [W}
D/A Converter and Preamplifier : 76 [W]
D/A Converter Unit
Inputs
AES1 / 24 bits / 192 KHz
RCA1 / 24 bits / 192 KHz
USB / 24 bits / 192 KHz (native DSD available using ASIO drivers) Orpheus DSD (native DSD)
TOSLINK / 24 bits / 96 KHz
RCA2 / 24 bits / 192 KHz
AES2 / 24 bits / 192 KHz
Outputs
2 x Balanced
2 x Unbalanced
Sensitivity
2.4 Vmrs for unbalanced outputs @ 0dB
4.8 Vrms for balanced outputs @ 0dB
Word clock
48 kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz
Input impedance
Unbalanced outputs 75 Ω
Balanced outputs 150 Ω
Frequenct Response
< 0.01dB 20 Hz to 20 KHz
Total Harmonic Distortion
1KHz / Output voltage 4.8Vmrs
115 dB
Signal in Noise Ratio
1 Khz / Output voltage 4.8 Vrms
SNR 120dB
Noise Floor
140 dB
Dimensions
440 x 420 x 80 mm
Weight
14.5 kg
Preamplifier Unit
Inputs
8 x Balanced
8 x Unbalanced
4 x Balanced Processor inputs
Outputs
4 x Balanced
4 x Unbalanced
2 x Unbalanced record Outputs
Input Impedance
Unbalanced inputs 47 KΩ
Balanced Inputs 95KΩ
Output impedance
Unbalanced outputs 75 Ω
Balanced outputs 150 Ω
Maximal input voltage
11 Vrms
Maximal Output voltage
8 Vrms (6.2 Vrms saturation level)
Frequency Response
+/- 0.002 dB 20 Hz to 20 KHz
Total Harmonic Distortion
1 KHz / Input voltage 11 Vrms / Output voltage 2 Vrms
THD+N Balanced 101 dB / 0.0008%
Signal on Noise Ration
1 KHz / Input voltage 11 Vrms / Output voltage 2 Vrms
SNR 105 dB
Noise Floor
> 130dB
Crosstalk
Channels right and left totally separated
Crosstalk between channels > 95 dB
Propagation delay
100 ns
Slew rate
10 V/us
Digital volume control
From -100dB to + 10dB by 0.5dB steps
Input level
Separated input level adjustment for all channels +/- 10 dB by steps of 0.5 dB
Balance
Centered / -0.5 dB / -1 dB / -1.5 dB / -2 dB / -2.5 dB / -3 dB / -4 dB / -5 dB / -6 dB / -8 dB / -10 dB / -15 dB / -20 dB / -25 dB / -30 dB / -35 dB / -40 dB / -50 dB / Mute
Dimensions
440 x 420 xn 80 mm
Weight
13.8 kg
)
!
