| Specifications |
| Power Supply Unit |
| Main voltage |
230 [Vac] |
| Dimensions |
440 x 420 x 120 mm |
| Power Transformers |
Low noise toroïdal power transformer of 175 [VA]
Total power of 350 [VA]
|
| Analog windings |
35V each / 2 x 25 [VA] |
| Digital windigs |
6V each / 2 x 25 [VA] |
| Capactitance |
Total capacitance of more than 115 [mF] |
| Ground |
Digital and analog ground separated

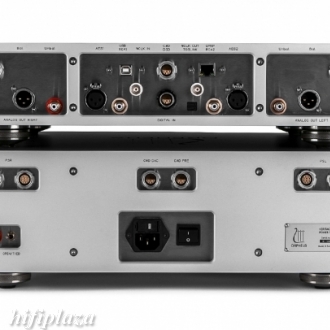

A ground connector is present on the rear panel for external grounding
|
| Weight |
24.3kg |
| Power consumption |
Standby : 4.5 [W]
With only the D/A Converter : 57 [W]
With only the preamplifier : 19 [W}
D/A Converter and Preamplifier : 76 [W]
|
|
D/A Converter Unit
|
| Inputs |
AES1 / 24 bits / 192 KHz
RCA1 / 24 bits / 192 KHz
USB / 24 bits / 192 KHz (native DSD available using ASIO drivers) Orpheus DSD (native DSD)
TOSLINK / 24 bits / 96 KHz
RCA2 / 24 bits / 192 KHz
AES2 / 24 bits / 192 KHz
|
| Outputs |
2 x Balanced
2 x Unbalanced
|
| Sensitivity |
2.4 Vmrs for unbalanced outputs @ 0dB
4.8 Vrms for balanced outputs @ 0dB
|
| Word clock |
48 kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz
|
| Input impedance |
Unbalanced outputs 75 Ω
Balanced outputs 150 Ω
|
| Frequenct Response |
< 0.01dB 20 Hz to 20 KHz
|
| Total Harmonic Distortion |
1KHz / Output voltage 4.8Vmrs
115 dB
|
| Signal in Noise Ratio |
1 Khz / Output voltage 4.8 Vrms
SNR 120dB
|
| Noise Floor |
140 dB
|
| Dimensions |
440 x 420 x 80 mm
|
| Weight |
14.5 kg
|
|
Preamplifier Unit
|
| Inputs |
8 x Balanced
8 x Unbalanced
4 x Balanced Processor inputs
|
| Outputs |
4 x Balanced
4 x Unbalanced
2 x Unbalanced record Outputs
|
| Input Impedance |
Unbalanced inputs 47 KΩ
Balanced Inputs 95KΩ
|
| Output impedance |
Unbalanced outputs 75 Ω
Balanced outputs 150 Ω
|
| Maximal input voltage |
11 Vrms
|
| Maximal Output voltage |
8 Vrms (6.2 Vrms saturation level)
|
| Frequency Response |
+/- 0.002 dB 20 Hz to 20 KHz
|
| Total Harmonic Distortion |
1 KHz / Input voltage 11 Vrms / Output voltage 2 Vrms
THD+N Balanced 101 dB / 0.0008%
|
| Signal on Noise Ration |
1 KHz / Input voltage 11 Vrms / Output voltage 2 Vrms
SNR 105 dB
|
| Noise Floor |
> 130dB
|
| Crosstalk |
Channels right and left totally separated
Crosstalk between channels > 95 dB
|
| Propagation delay |
100 ns
|
| Slew rate |
10 V/us
|
| Digital volume control |
From -100dB to + 10dB by 0.5dB steps
|
| Input level |
Separated input level adjustment for all channels +/- 10 dB by steps of 0.5 dB
|
| Balance |
Centered / -0.5 dB / -1 dB / -1.5 dB / -2 dB / -2.5 dB / -3 dB / -4 dB / -5 dB / -6 dB / -8 dB / -10 dB / -15 dB / -20 dB / -25 dB / -30 dB / -35 dB / -40 dB / -50 dB / Mute
|
| Dimensions |
440 x 420 xn 80 mm
|
| Weight |
13.8 kg
|
)
!
