No 61201
브랜드 Lyra(라이라)

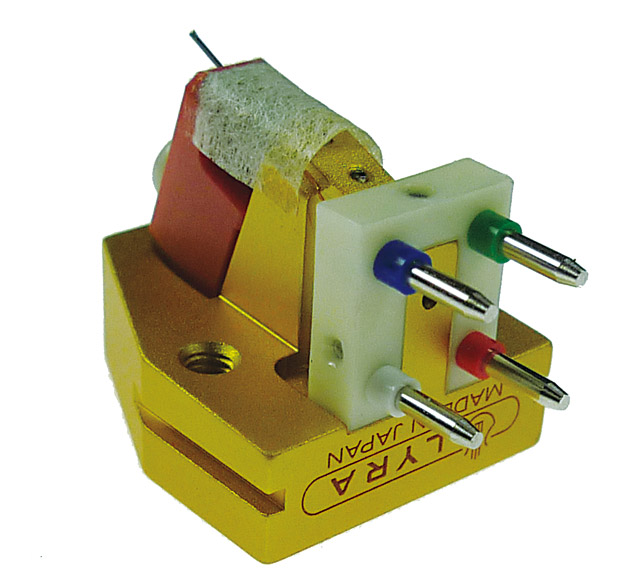

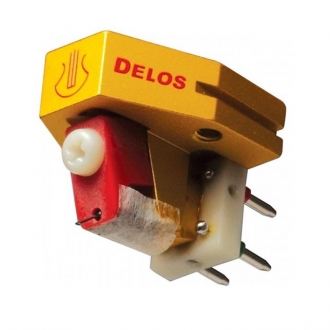

모델명 [카트리지] Delos
상태 새제품
가격 2,700,000
Shop 동신전자
전화 010-6260-9563
문자


특징
동신전자
인천의 HiFi 아날로그 전문점
인천광역시 미추홀구(남구) 석정로
38 (숭의동 162-105)
은행명 :
계좌 :
예금주 :

판매자의 다른상품보기

500,000원

2,000,000원
3,500,000원
11,000,000원
1,900,000원
상품상세설명








  • Builder : Yoshinori Mishima (final build, testing), Akiko Ishiyama (primary build)
  • Type : Medium weight, medium compliance, low-impedance moving coil cartridge
  • Stylus: Namiki microridge line-contact nude diamond stylus (2.5um x 75um), surface-mounted
  • Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
  • Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
  • Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
  • Frequency range: 10Hz ~ 50kHz
  • Channel separation: 30dB or better at 1kHz
  • Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
  • Vertical tracking angle: 20 degrees
  • Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
  • Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
  • Distance from mounting holes to stylus tip: 9.5mm
  • Cartridge weight (without stylus cover): 7.3g
  • Recommended tracking force: 1.7g ~ 1.8g (1.75g preferred)
  • Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in user manual)
  • Recommended load via step-up transformer: 5 ~15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
  • Recommended tonearms: High-quality pivoted or linear (tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment
