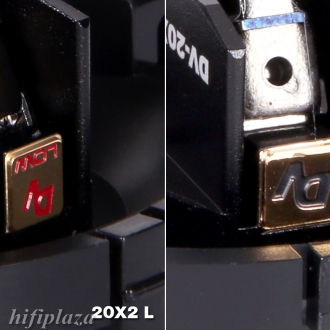

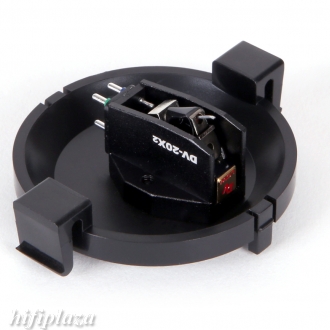

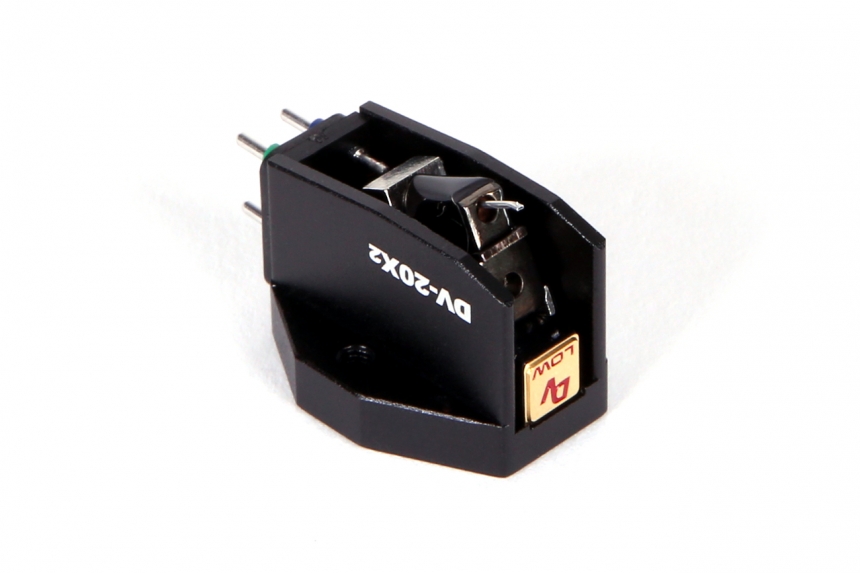

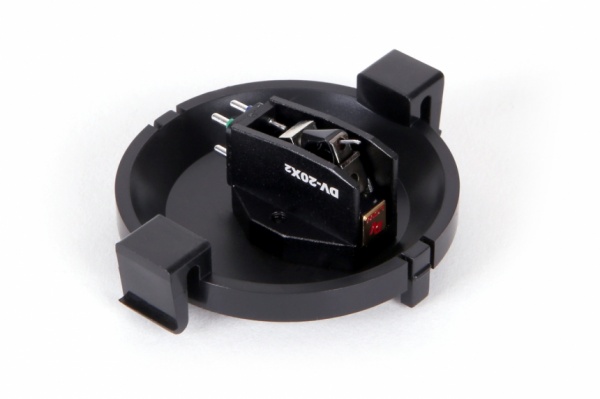

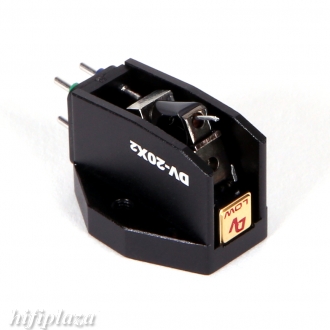

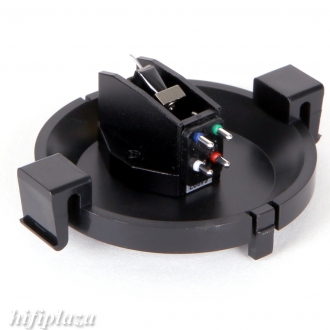

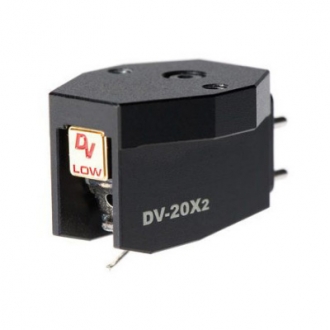

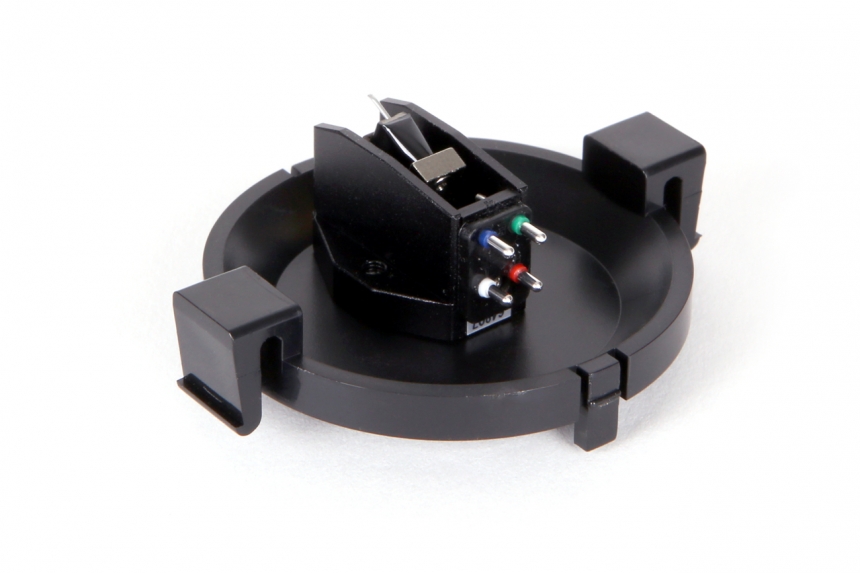

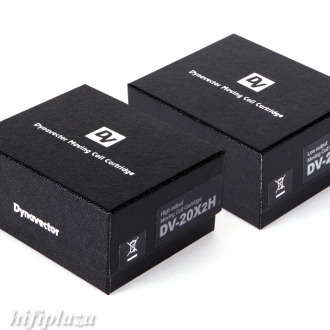

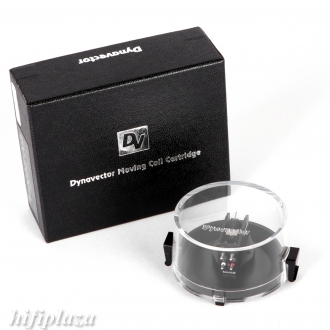

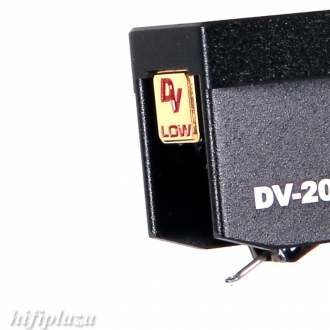

DV 20X2 (0.3mV/2.8mV)









Specs



• Type High/Low output moving coil cartridge with flux damper and softened magnetism

• Output Voltage 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)

• Channel Separation 25 dB (at 1KHz)

• Channel balance 1.0 dB (at 1KHz)

• Frequency response 20 - 20,000Hz (± 1dB)

• Compliance 12 mm/N

• Tracking force 1.8 - 2.2 g

• Impedance 150 ohms / 5 ohms

• Recommended load impedance > 1,000 ohms / > 30 ohms

• Cantilever 6mm length, hard aluminium pipe

• Stylus tip Micro Ridge Nude diamond

• Weight 9.2 g
