The arm-less player which introduced the direct coupling scheme and various technologies which established reputation was acquired by RX-5000 and bus-logic-circuit-111, and investigated higher completeness.
The oscillation mode was thoroughly analyzed with the structural dynamic analyzer, and the direct coupling scheme original with a micro is adopted. By this scheme, the shaft assembly of a turntable and arm mounting are completely unified with the connection frame, the oscillating circulatory system is formed into a corresponding phase, and the turntable and the arm make more exact tracing possible, without causing the phase gap by oscillation.
Moreover, it means that the oscillating circulatory system is short as much as possible, and rigidity had moreover increased according to this unification structure, and the translation loss at the time of a cartridge changing the vibrational energy from a sound track into an electrical signal is suppressed to the relative minimum.

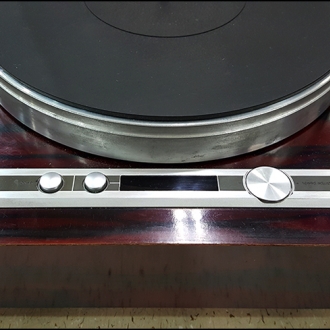

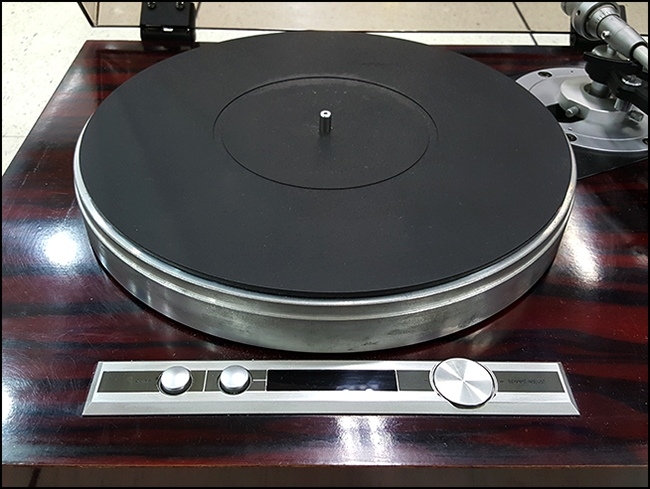

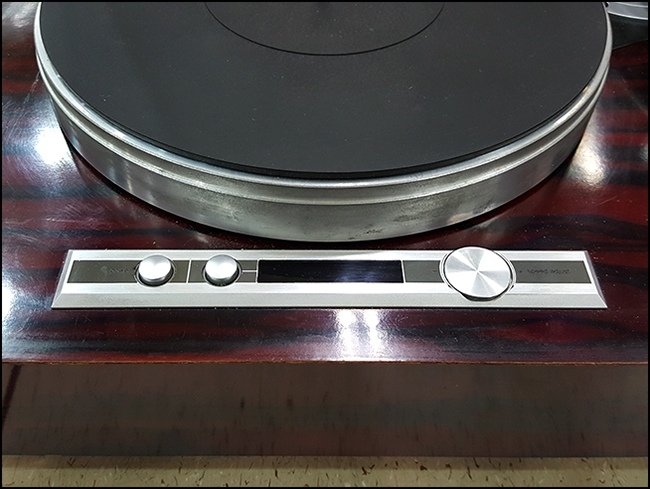

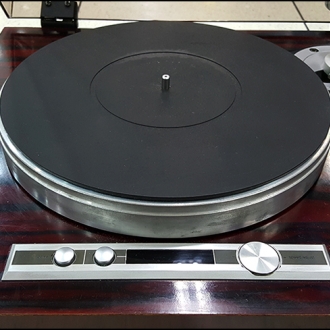

The turntable part used the subturntable of the diameter of special aluminum and 180mm as zinc, and has adopted as the quality of the material of the main turntable of the diameter of 305mm the double turntable scheme of carrying out a field splicing firmly on three screws.
By high precision polish which a micro is proud of, the bonded surface had realized the flat sir face, dumped the resonance of the main turntable according to this double structure, and has improved play sound conjointly with the effect of the weight append on a subturntable, and a moment-of-inertia enhancement.
The coupling scheme by the conventional taper was developed, the more positive press fit scheme is adopted as a join of a subturntable and a turntable shaft, and clarification of the supporting point is attained.
The turntable shaft made the radial lay length of the bearing part longer 12mm than bus-logic-circuit-91, and has eliminated �K�^ produced by the gap between bearings.
The high rigidity shaft (stainless steel copper) of the diameter of 16mm is stored by the big bearing assembly, and serves as an oil bath scheme filled up with special synthetic oil.
It is possible to allot a stroboscope to a main turntable perimeter rear view, and to check from the front with a reflecting mirror.
The insulator in consideration of an extraneous vibration or a howling is adopted.

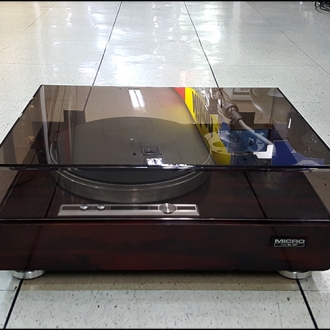

The cabinet serves as native wood Veneer-Sheet finish of urethane finish.

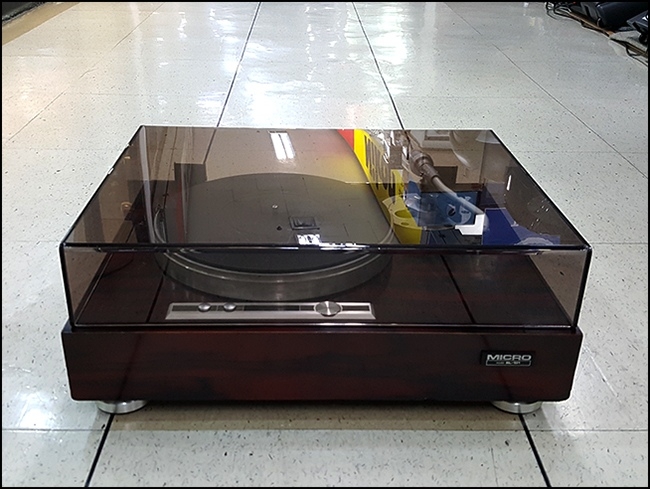

Moreover, the book jacket has adopted acrylics pasting and a V-grooving structure.

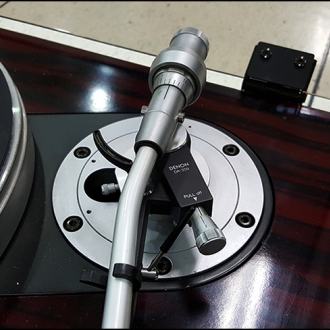

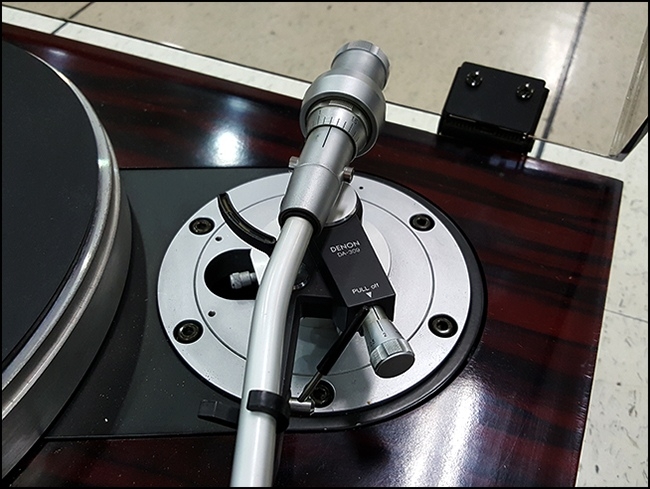

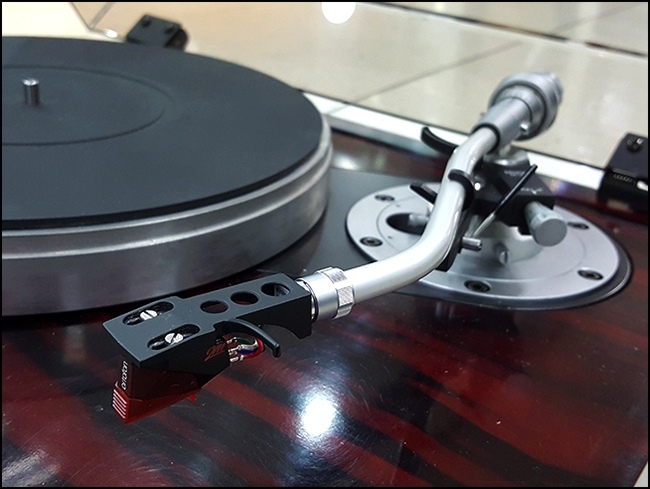

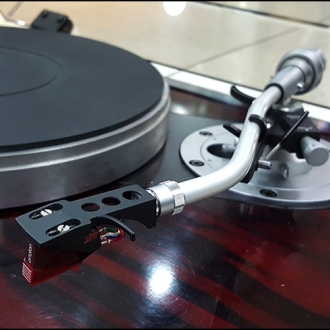

One A-1200 series is attached to the arm mounting base.

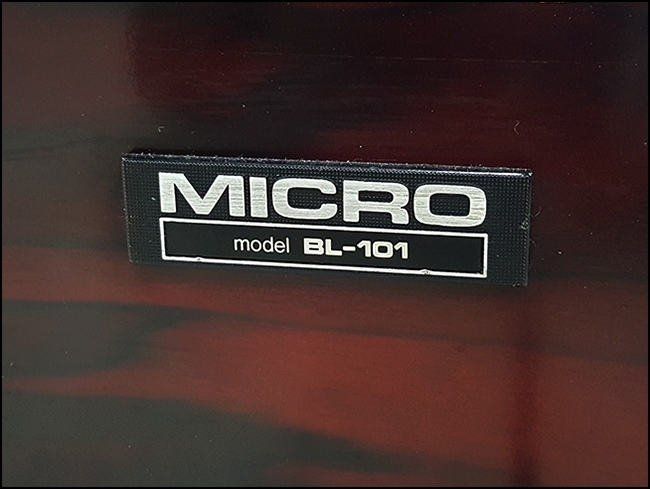

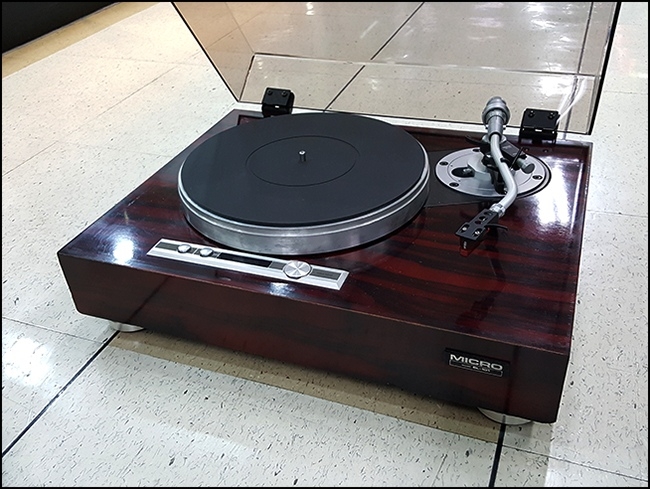

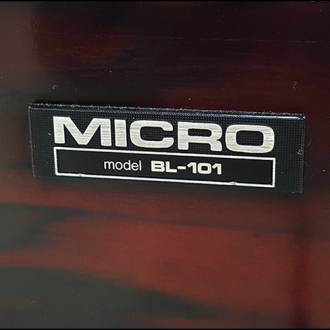

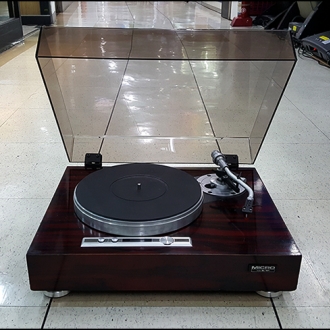

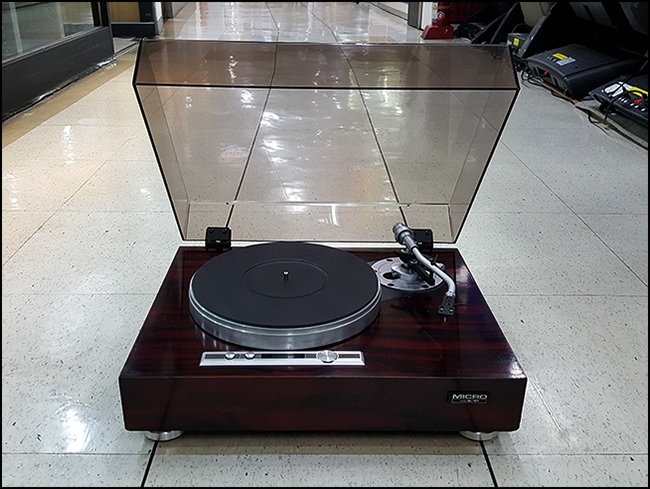

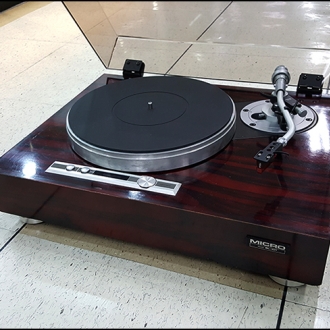

마이크로 세이키(Micro Seiki) BL-101은 일본에서 출시된 전설적인 하이엔드 벨트 드라이브 방식의 수동 턴테이블(암리스 플레이어)입니다. 뛰어난 진동 억제력과 더블 플래터 구조로 명성이 높으며, 구동계와 기계 공학적 설계가 매우 우수한 모델입니다. [1, 2, 3, 4]
)
