| Type |

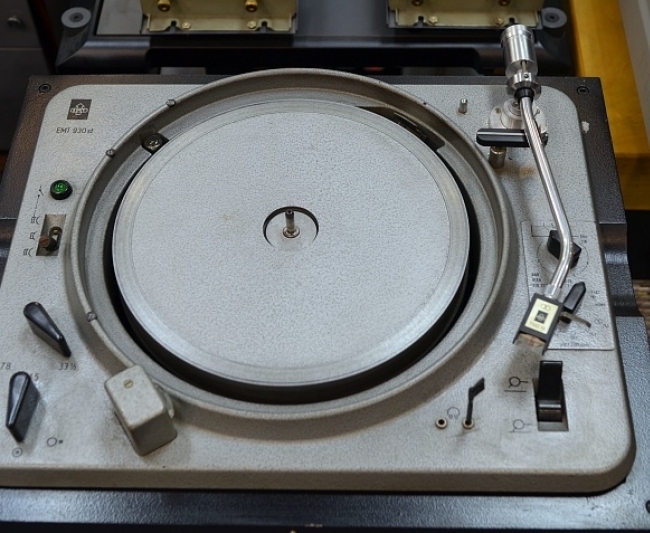

Record player |
| Phono Motor Section |
| Drive system |
Idler drive |
| Number of revolutions |
33 1/3, 45, 78 rpm |
| Turntable |

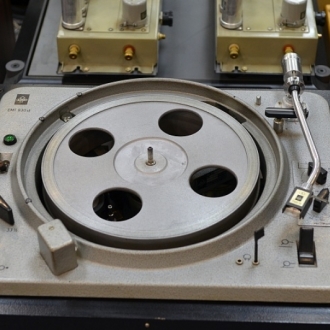

33 cm Aluminum Die Cast Main + Plexiglass Sub |
| Wow flutter |
± 0.075% |

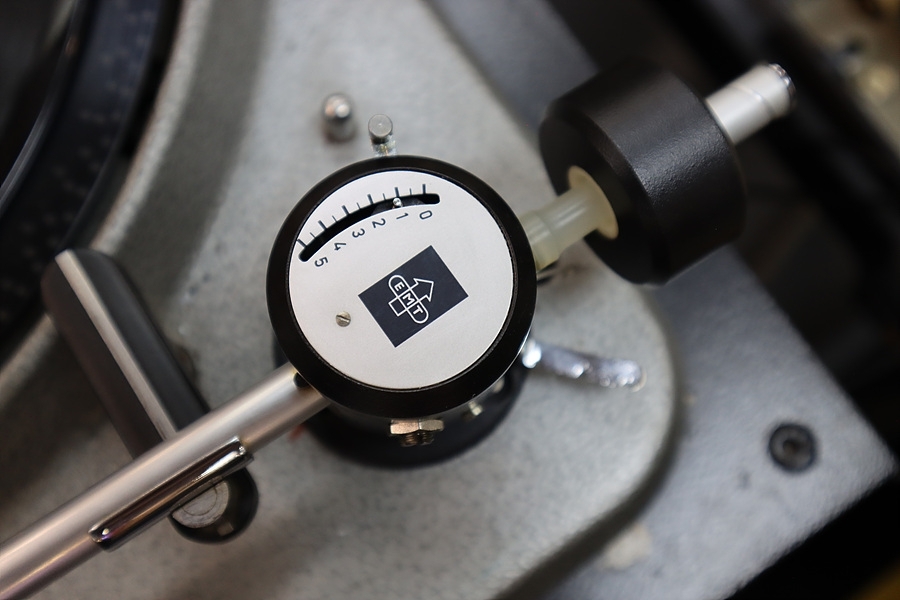

| Tone Arm Section |
| Type |
Dynamic balance type |
| Effective length |
230mm |
| Overhang |
15mm |

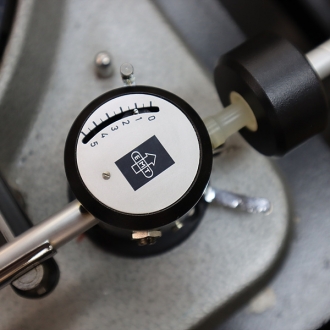

| Needle pressure range |
0 ~ 5g |
| Attachment |
Arm lifter
Inside for scan seller |
| Equalizer Amplifier Section |
| Equalization characteristic |
DIN45536/37, NAB
RIAA75 / 318 / 3180 μ s Mono & Stereo
DIN45533 50/318/3180 µs Mono
BBC 25/318/3180 μ s Mono
FLAT 0/318/3180 μ s Mono |
| Input Sensitivity / Impedance |
1mV |
| Input impedance |
140 ~ 200 Ω (30 Hz ~ 16 kHz) |

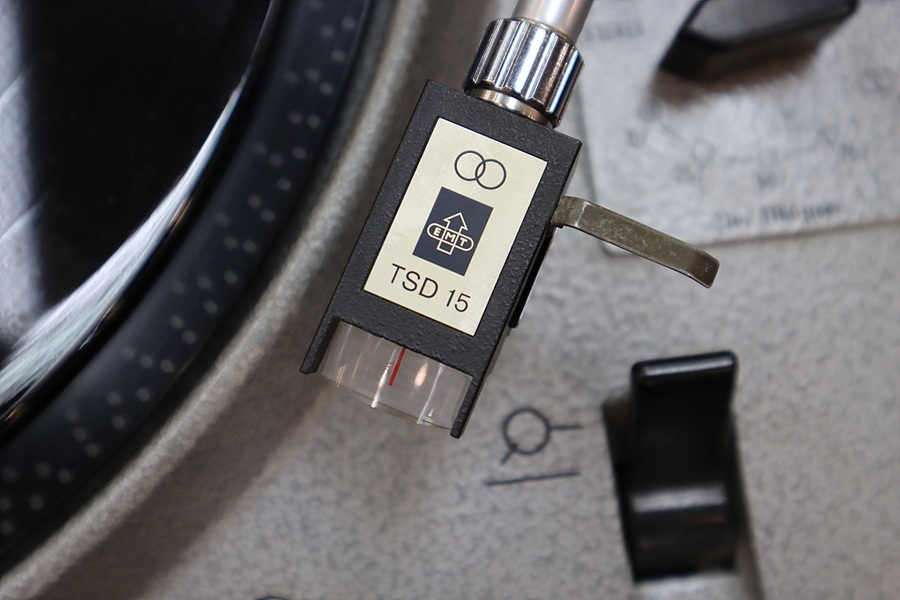

| Cartridge impedance |
40 Ω max. |
| Input margin |
12 dB (1 mV, 1 kHz) |
| Output Gain |
75 dB (T-type cartridge)
55 dB (OF-type cartridge) |
| Output level |
1.55 v (+ 6 db) / 200 Ω load
3.1 v (+ 12 db) / 600 Ω load
4.4 V (+ 15 dB) / 600 Ω load |
| Output level variable width |
-60dB to + 17.5 dB |
| Harmonic distortion factor |
0.2% or Less (200 Hz to 12 kHz)
0.3% or Less (60 Hz)
0.4% or Less (40 Hz) |
| Cross modulation distortion factor |
Not more than 1.0% |
| Signal-to-noise ratio |
70 dB (peak, wtd) |
| Crosstalk |
50 dB or More (40 Hz ~ 16 kHz at 4.4 V Output) |
| Filter |
Scratch Filter : 2 kHz ~ 20 kHz Variable, 10dB/oct. |
| Monitor output |
Mono : unbalanced
Headphone : 300 Ω ~ 400 Ω |
| |
| Pwer |
100V/200V/220V/240V, 50Hz/60Hz |
| Power consumption |
30W |
| External dimensions |
Body : Width 490x Height 270x Depth 390 mm

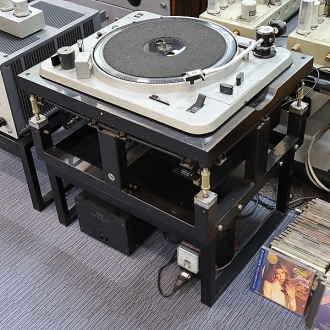

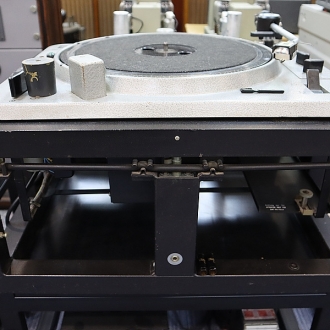

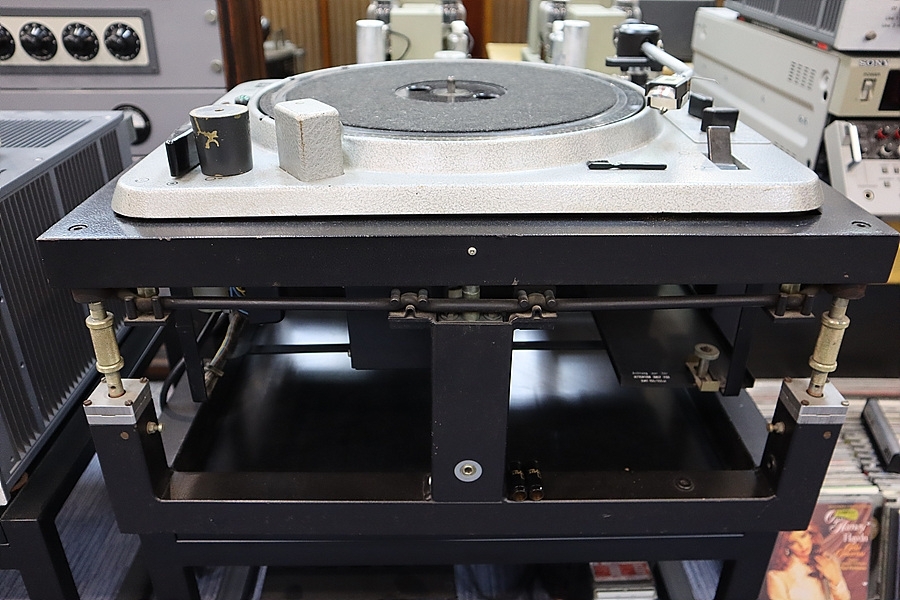

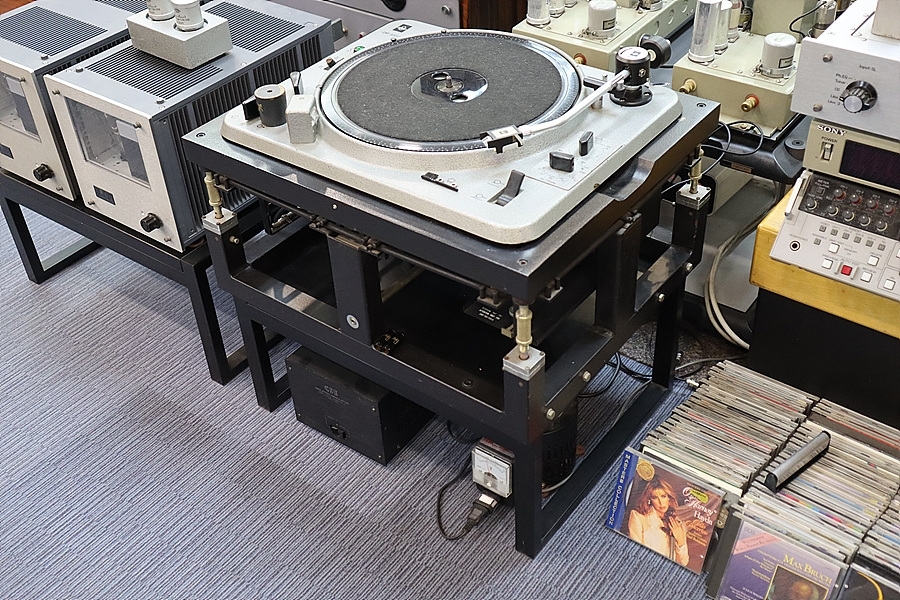

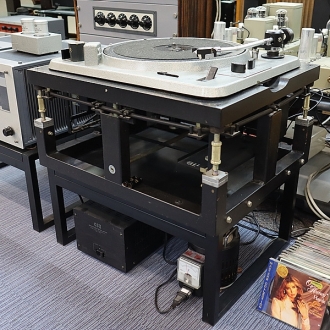

Suspension : Width 540x Height 250x Depth 440 mm |
| Weight |
Body : 23.4 kg
Suspension : 26.0 kg
|
)
!
