| Design |
Three-way bass reflex
Single apparent source
driver configuration |
| Drive Units |
Uni-Q driver array:
MF: 125mm (5in.) Li-Mg-Al/ LCP hybrid cone
HF: 25mm (1in.) vented aluminium dome

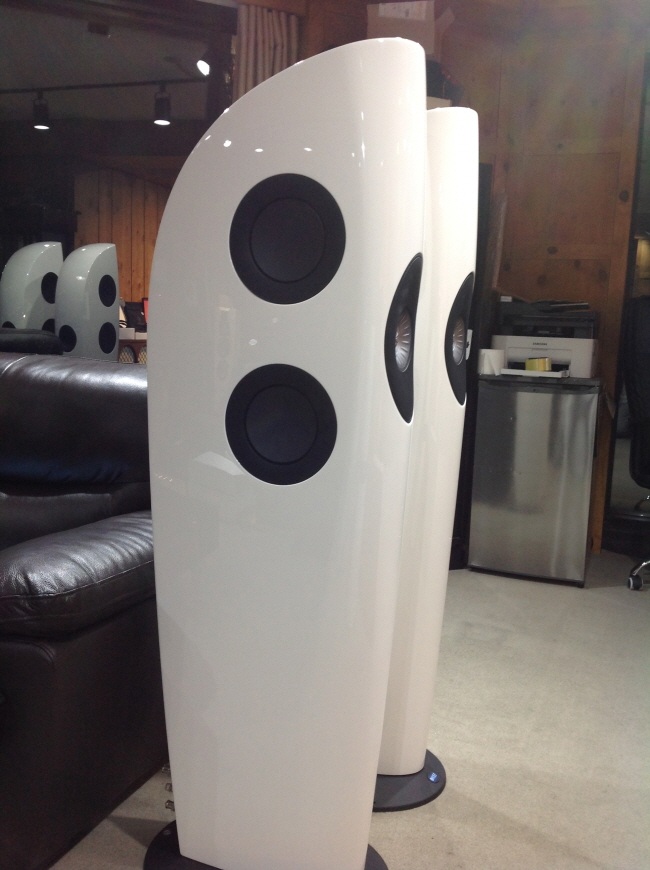

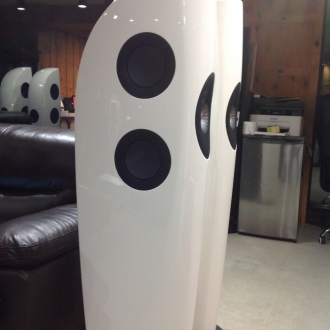

Bass units:
LF: 4 x165mm (6.5in.) with force cancelling |
| Frequency range free field (-6dB) |
34Hz - 45kHz |
| Frequency range typical in room bass response (-6dB) |
25Hz |
| Frequency Response (±3dB) |
40Hz - 35kHz |
| Crossover frequency |
320Hz, 2.4kHz |
| Amplifier requirements |
50 - 400W |
| Sensitivity (2.83V/1m) |
90dB |
| Harmonic distortion 2nd & 3rd harmonics (90dB, 1m) |
<0.5% 40Hz - 100kHz
<0.2% 200Hz - 10kHz |
| Maximum output (peak sound pressure level at 1m with pink noise) |
116dB |
| Impedance |
4 Ohms (3.2 Ohms min.) |
| Weight |
35.3kg (77.8lbs) |
| Dimensions - with plinth (H x W x D) |
1461 x 338 x 475mm
57.5 x 13.3 x 18.7 in. |
)
!
