JBL 2441 드라이브



http://audio-database.com/JBL/unit/2441.html







1. 수평지향 각도; 90도 수직지향 각도 ; 40도

2. 크로스오버; 300hz 이상

3. 적함드라이버 :288B ~C, ~D 290e, 291-16a

4. 무계; 16kg

​

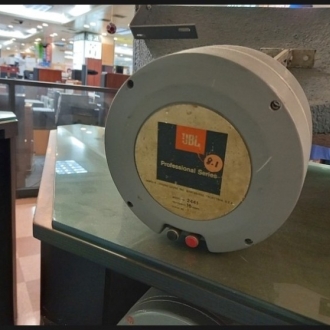

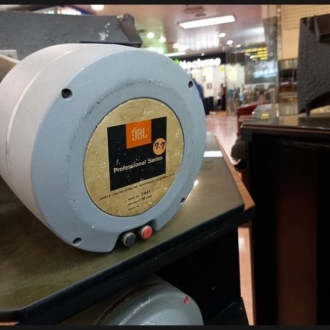

JBL 2441

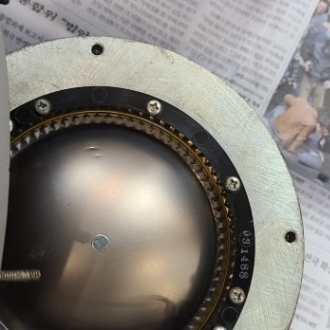

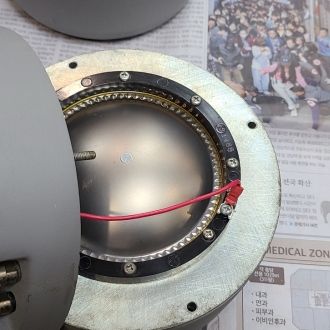

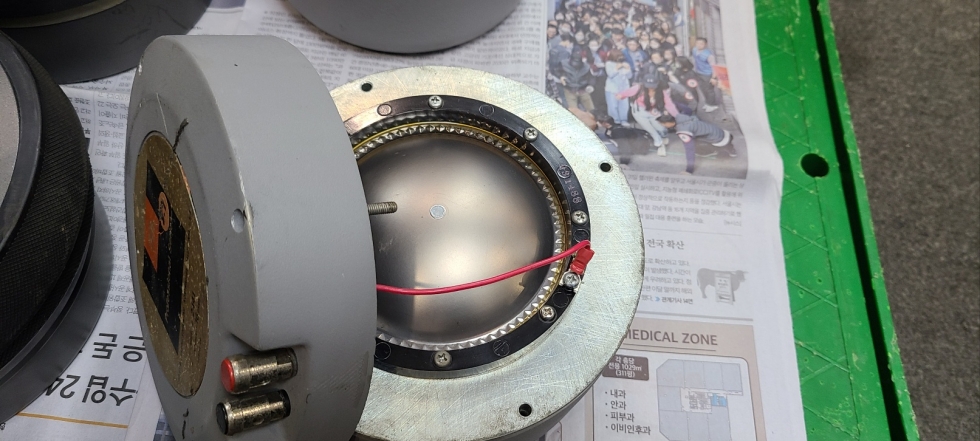

• Diaphragm 4" aluminium with diamond pattern suspension.

• Voice coil 4" diameter edgewound aluminium ribbon.

• Frequency response 500Hz~18kHz ±3db.

• Sensitivity 111dB 1w/1m on Q=6.3 horn.

• Power capacity 150w continuous above 1kHz 18dB/oct HPF.

• Impedance 16Ω

• Throat exit 2"

• Alnico magnet structure.
